Bleed & Crop Marks in Figma
Every professional print job needs proper bleed and crop marks. Printery adds them automatically so your prints come out perfect — no white edges, no content cut off.
Try Printery Free →
What Are Bleed & Crop Marks?
Crop Marks (Trim Marks)
Small lines printed at the corners of a page that show the printer exactly where to cut. They define the final trim size of your printed piece.
- • Placed outside the final trim area
- • Standard length: 5-10mm
- • Usually printed in registration black
Bleed Area
Extra area beyond the trim line where your design extends. This ensures no white edges appear if the cut is slightly off — which always happens in production.
- • Standard: 3mm (0.125") all sides
- • Design must extend into bleed
- • Gets trimmed off in finishing
Bleed, Trim & Safe Area Explained
Your Content Here
Keep text & important elements inside the safe area
Bleed Area
3mm / 0.125" beyond trim. Design extends here.
Trim Line
Final cut line. This is your finished size.
Safe Area
3-5mm inside trim. Text & logos stay here.
Standard Bleed Settings
| Document Type | Bleed | Safety Margin |
|---|---|---|
| Business Cards | 3mm (0.125") | 3-5mm |
| Flyers & Brochures | 3mm (0.125") | 5mm |
| Posters | 3-5mm | 10mm |
| Packaging | 3-5mm | 5mm |
| Large Format (Banners) | 10-25mm | 25mm |

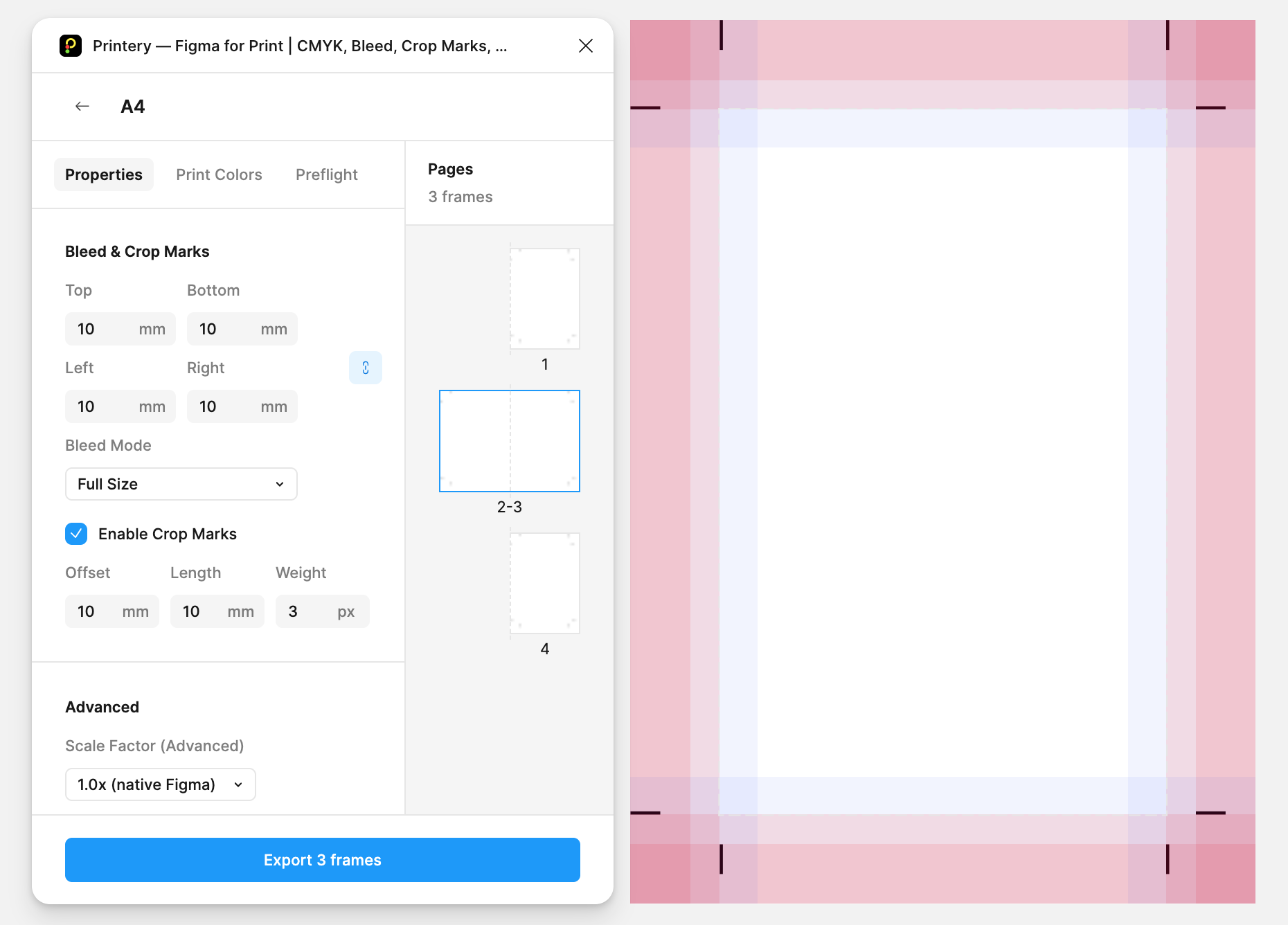

Types of Print Marks in Printery
Crop Marks
Corner marks showing where to trim. Standard for all commercial print jobs.
Bleed Marks
Marks showing the bleed extent beyond the trim. Helps the printer verify bleed coverage.
Registration Marks
Crosshair targets used to align CMYK plates during offset printing. Essential for multi-color work.
Color Bars
Strips of CMYK color patches used to verify ink density and consistency across the print run.
Professional Print Marks, Zero Effort
Add bleed, crop marks, and registration marks automatically. Your printer will thank you.
Try Printery Free
